MLenz¶

Multi-Planar Reconstruction MRI viewer — NIfTI, DICOM, embedded 3D volume rendering.

Demo¶

MLenz demo 2.0¶

MLenz demo 1.0¶

Screenshots¶

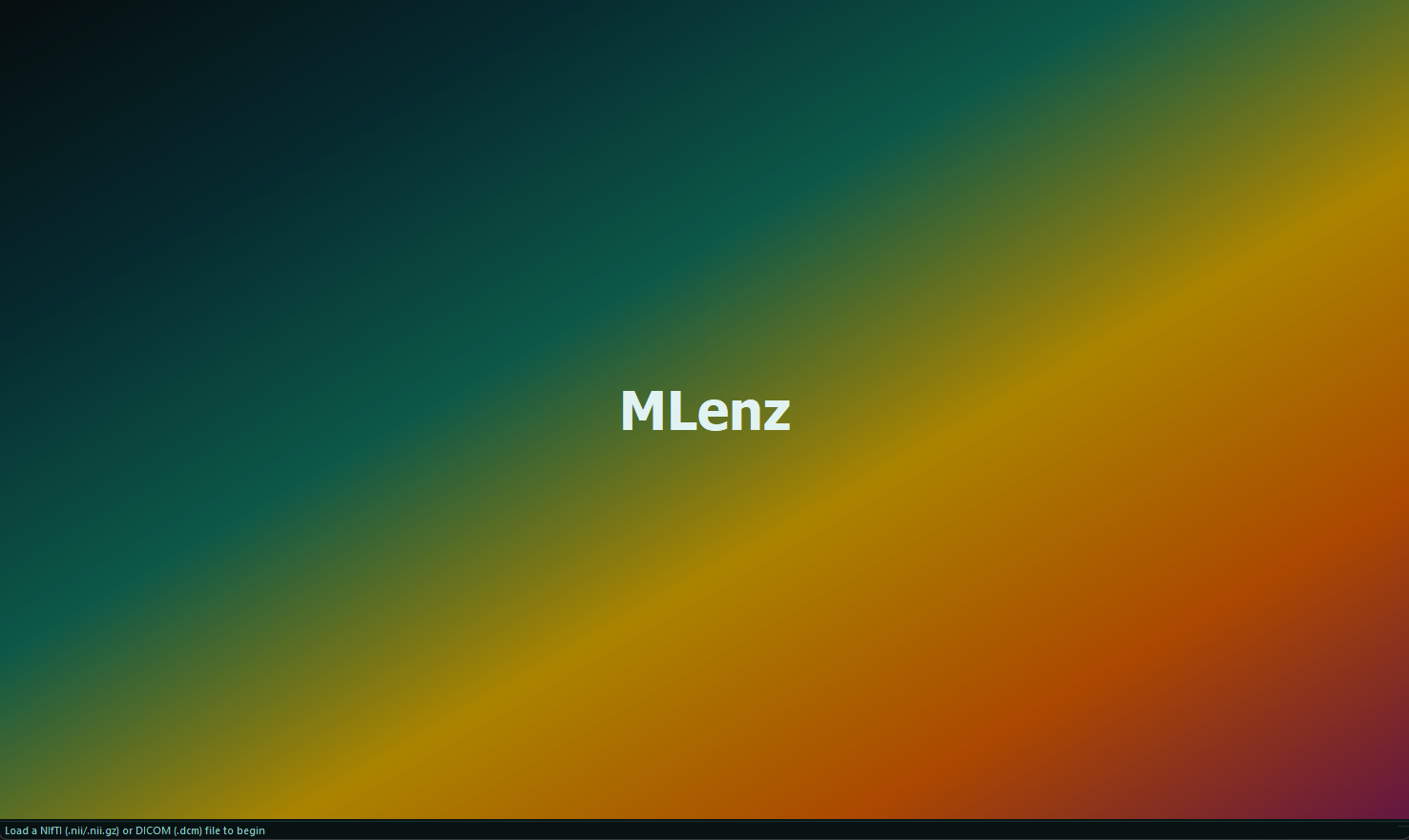

Entry window¶

Entry window

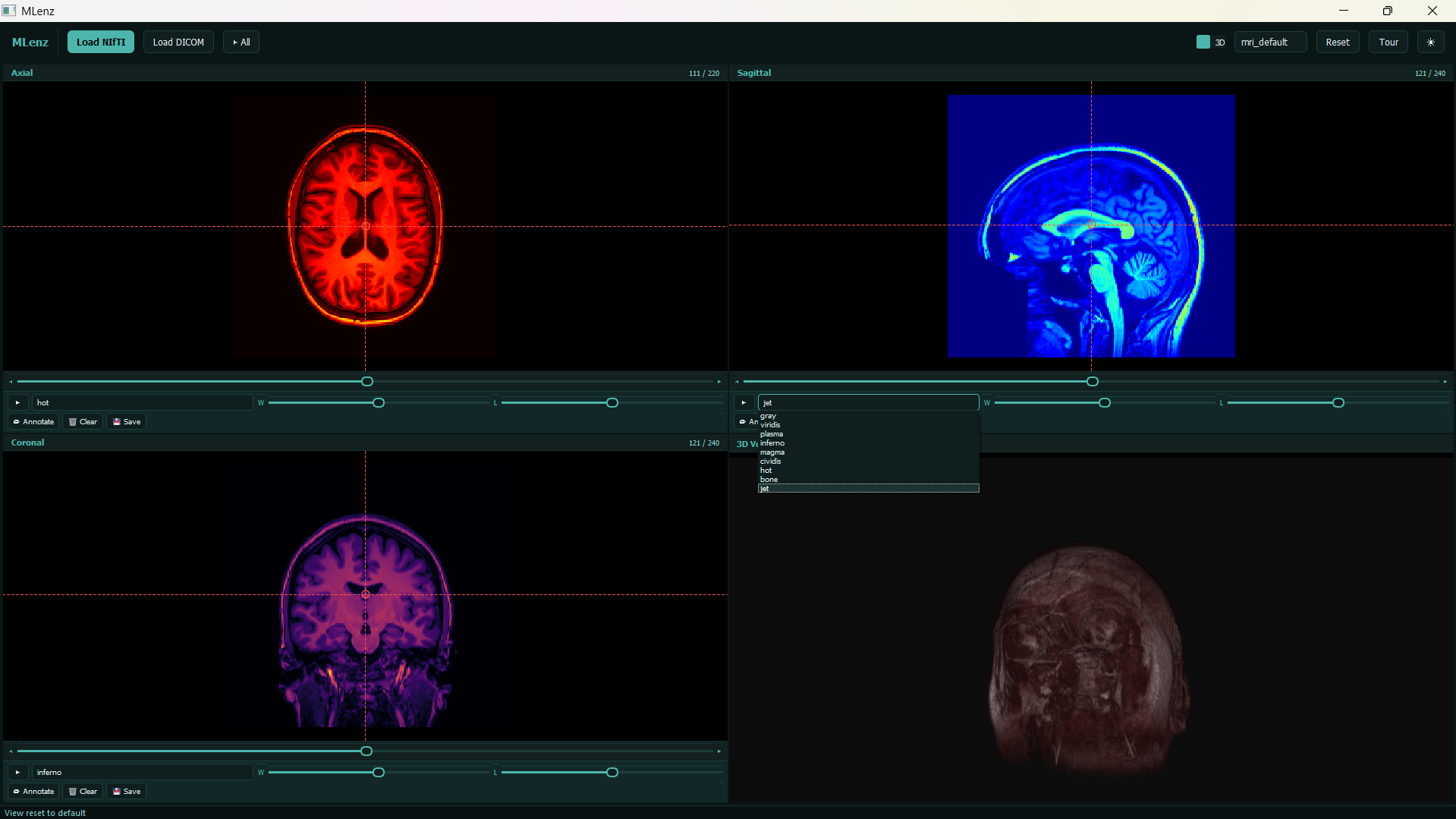

Different color mapping¶

Different color mapping

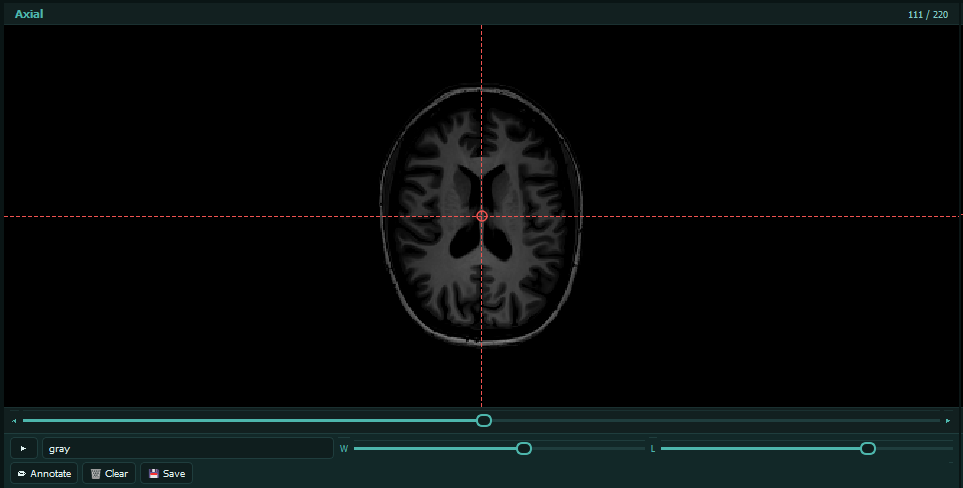

Window/Level controls¶

Window/Level

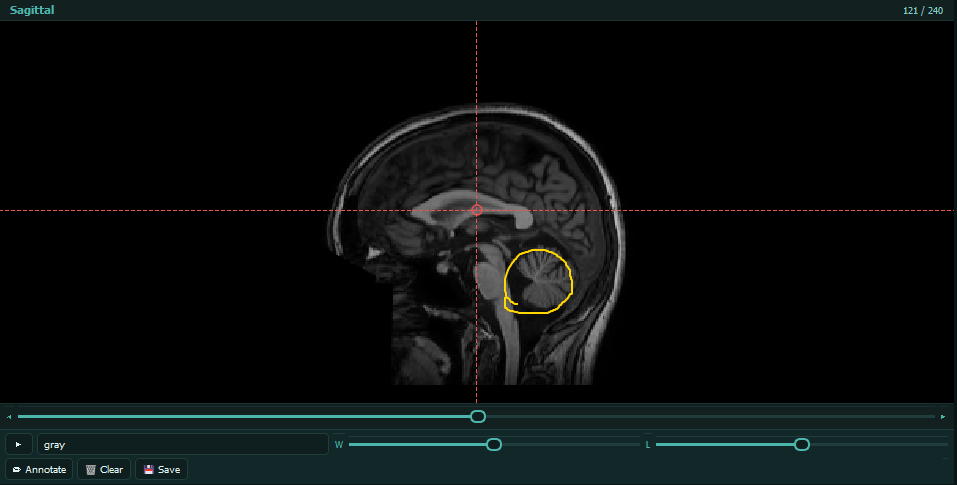

Draw annotations¶

Draw annotations

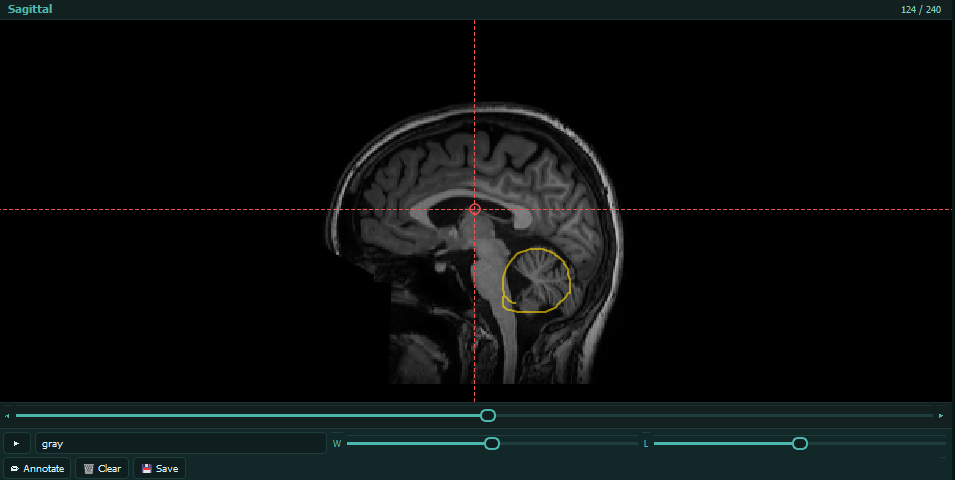

Annotations fade with slices¶

Annotations fade with slices

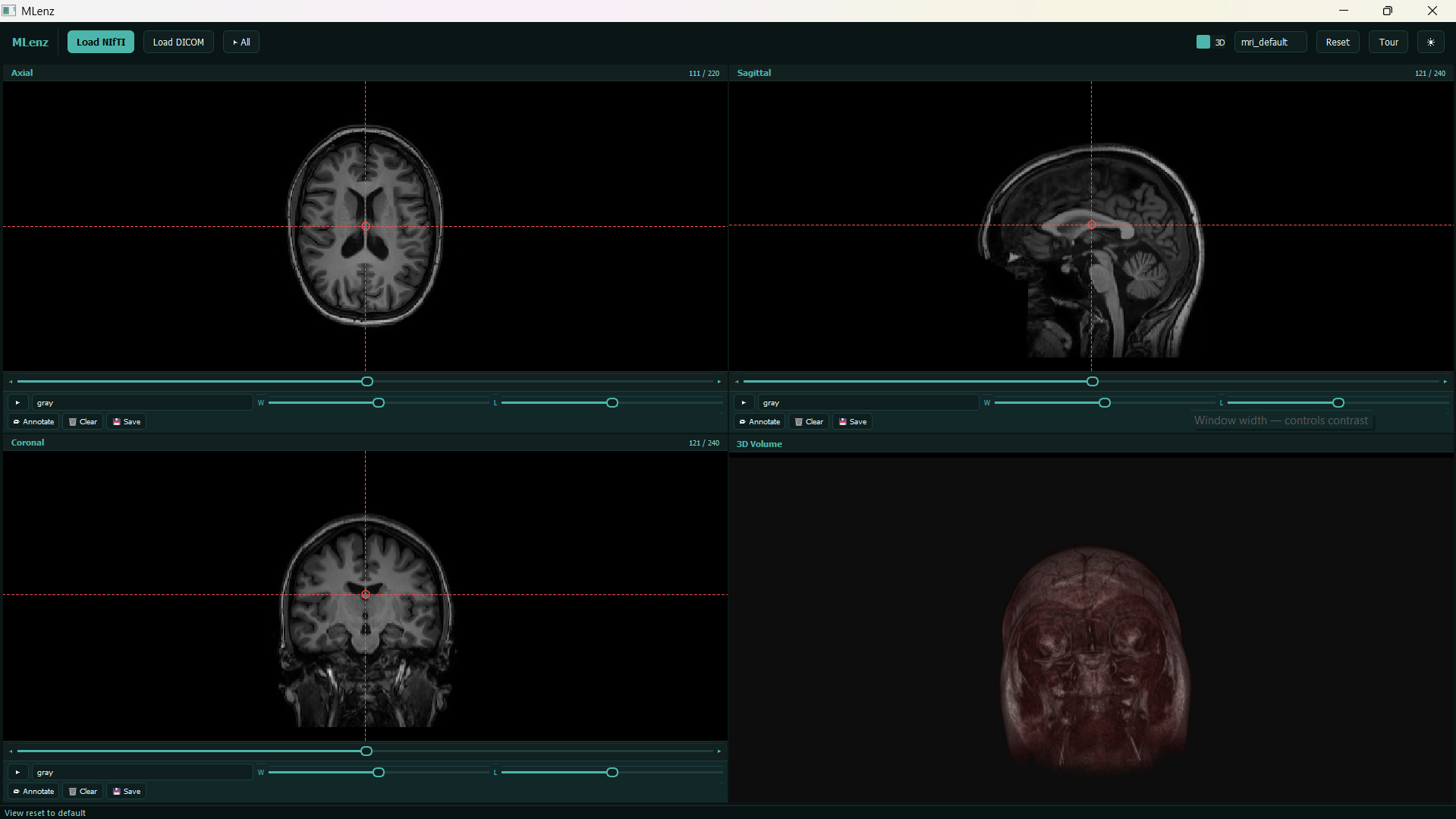

3D construction using VTK¶

3D construction using VTK

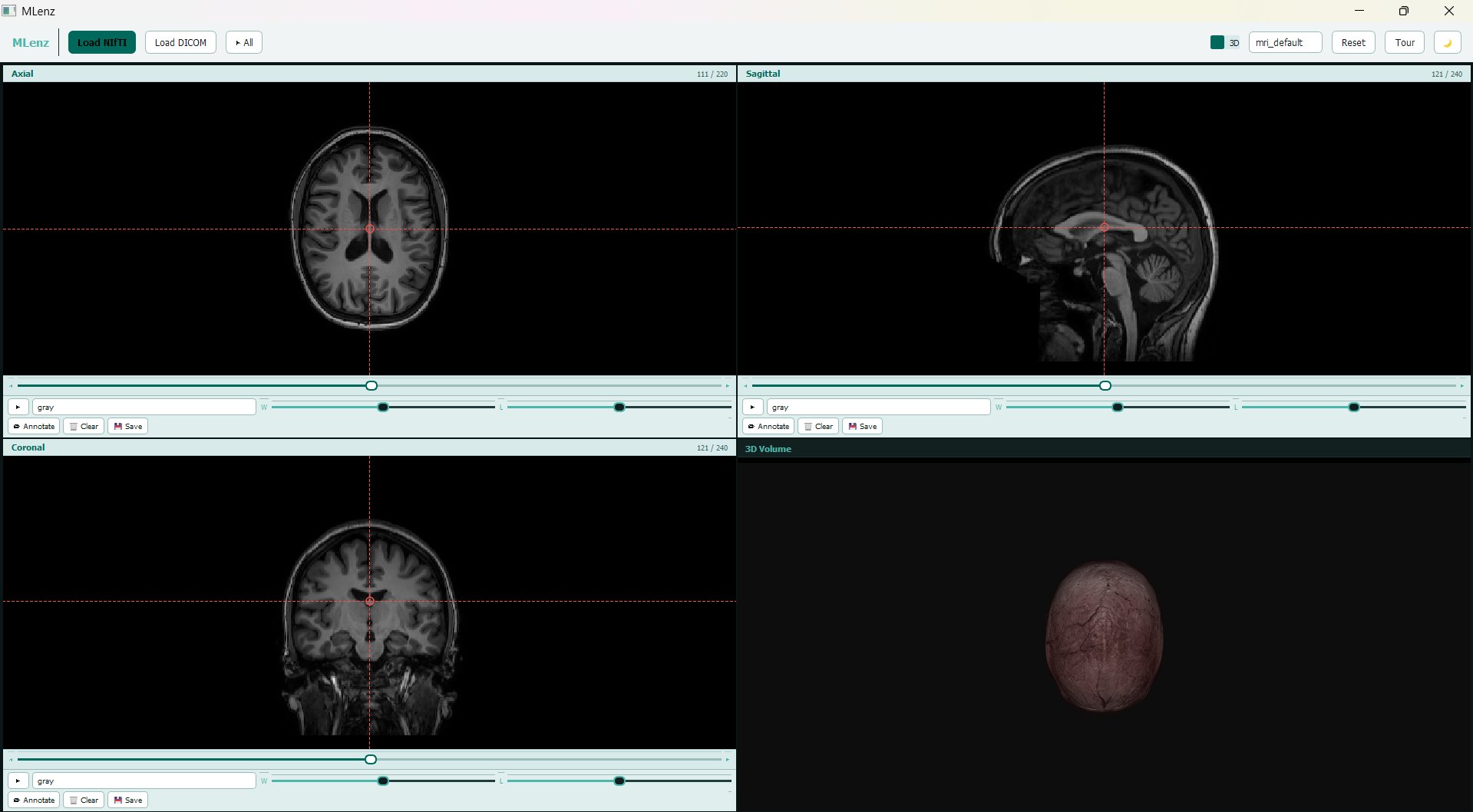

Light mode¶

Light mode

At a glance¶

Feature	Details
File formats	NIfTI `.nii`/`.nii.gz` · single DICOM `.dcm`
MPR planes	Axial · Coronal · Sagittal — synchronized
Crosshairs	Draggable — move any line, all three planes update in real time
Crosshair circle	Hollow red dot marks the intersection point
Per-viewport controls	Play/Pause · colormap · W/L sliders — embedded in each viewport
Global cine	▶ All / ⏸ All — play every plane together
Annotation	Freehand drawing, clear, export viewport as PNG
3D rendering	VTK GPU ray-cast embedded as 4th panel
Transfer functions	MRI default · Bone · Angio · PET presets
Theme	Dark (clinical default) + light mode toggle
Background loading	QThread — UI stays responsive
Slice cache	LRU + prefetch for fast navigation
Start screen	fMRI-style gradient splash with dark overlay
Guided tour	Step-by-step overlay with spotlight prompts

Architecture¶

graph TD
    A["main.py"] --> B["ui/main_window.py\nMainWindow"]
    B --> C["ui/controls.py\nTopBar"]
    B --> D["ui/viewport.py\nSliceViewport ×3\nInfiniteLine crosshairs\nAnnotation layer"]
    B --> E["ui/theme.py\nThemeManager"]
    B --> F["core/loader.py\nVolumeData · guess_loader"]
    B --> G["core/renderer.py\nVolumeRenderer · VTK pipeline"]

Hard boundary: core/ never imports PyQt5, pyqtgraph, or matplotlib.

Quick start¶

git clone https://github.com/BasselShaheen06/MLenz.git
cd MLenz
python -m venv venv
venv\Scripts\activate       # Windows
source venv/bin/activate    # macOS / Linux
pip install -r requirements.txt
python main.py
